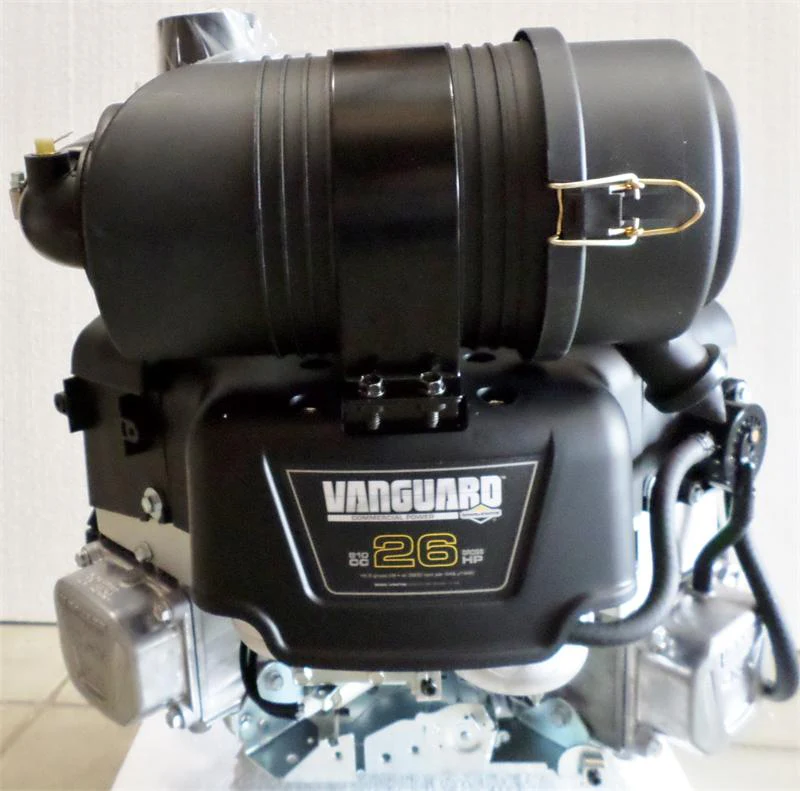

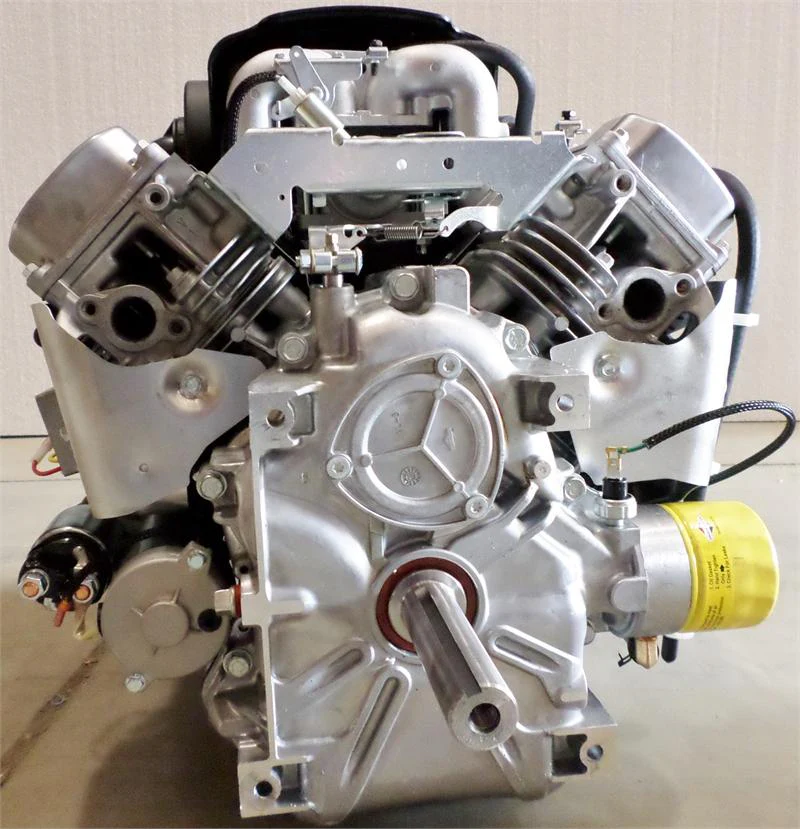

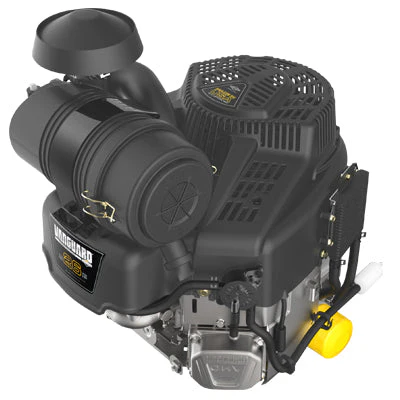

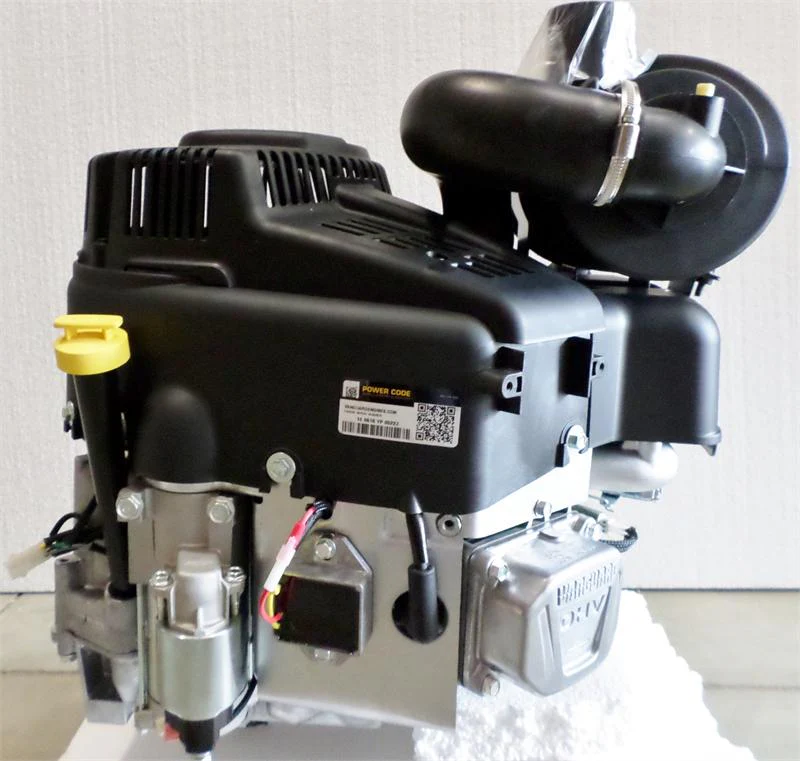

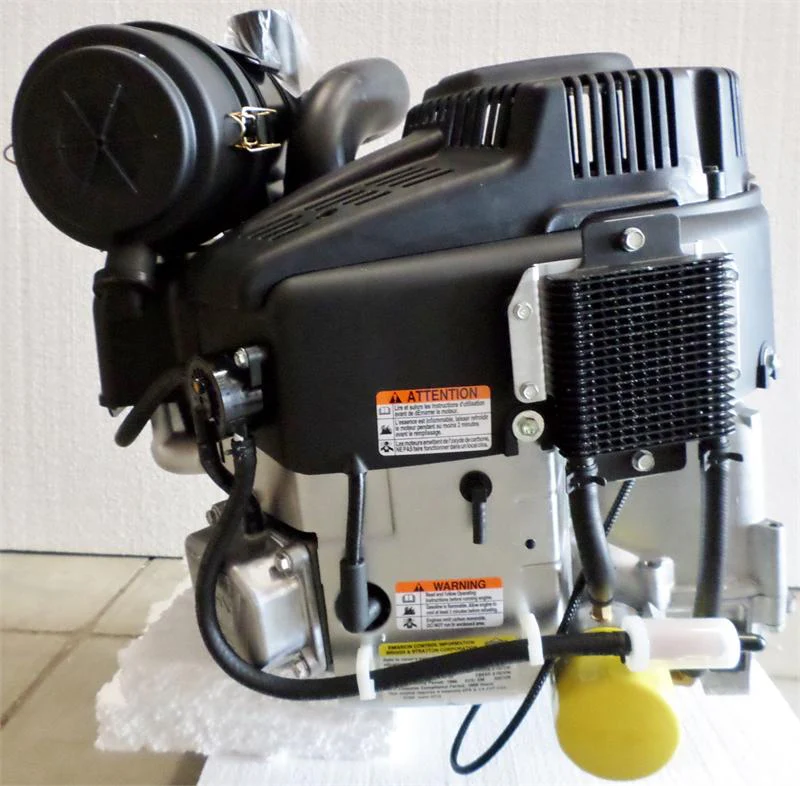

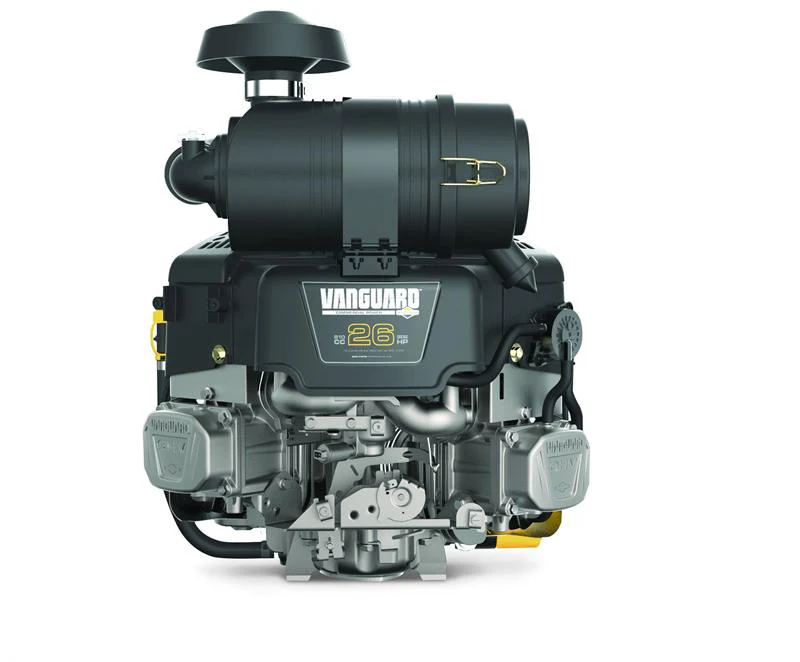

Briggs & Stratton 26 HP 810cc Vanguard Engine 1 x 3-5/32 #49R977-0033

Briggs & Stratton 26 HP 810cc Vanguard Engine 1 x 3-5/32 #49R977-0033

Briggs & Stratton 26 HP
Vanguard Series Vertical Shaft OHV Engine


MODEL NUMBER:
 49R977-0033

POWER OUTPUT:
 26 Horse Power

SHAFT MOUNTING:
 Vertical Shaft

SHAFT SIZE: (D x L)
1" x 3-5/32" shaft, tapped 7/16" with 1/4" keyway

STARTER TYPE:
 Electric Starter

APPLICATION(S):
 Riding Mower Engine

WEIGHT:
 94 lbs

REPLACES:
 NEW SERIES!

WARRANTY:
3 Year Warranty
NOTES/FEATURES:

26hp Briggs Vanguard OHV
1" x 3-5/32" shaft, tapped 7/16" with 1/4" keyway.

ENGINE SPECIFICATIONS
Gross Horsepower* 26
Engine Displacement (cc) 810 cc (49.42 cu in)
Engine Configuration Vertical
Bore 3.30in (83.794mm)
Stroke 2.89in (73.406mm)
Compression Ratio 8.4:1
Ignition System Magnetron®
Lubrication System Full Pressure Lube
Carburetor 2 Barrel Float Feed
Governor Mechanical
Cylinder Block Cast Iron Sleeve
Starter Solenoid Shift Electric Start
EPA Compliant Engine Yes


ENGINE DIMENSIONS
Length x Width x Height 19.94in (506.48mm) x 18.53in (470.66mm) x 22.89in (581.41mm)
Weight 91lbs
Oil Capacity 66-68oz (1.95-2.01L)
Engine Displacement (cc) 810 cc (49.42 cu in)


Engine Specifications

SKU 49R977-0033
Model/Type/Trim 49R977-0033
6 Pin Connector Installed
Air Cleaner Cyclonic with Rain Cap Loose
Air Cleaner Color 290 Satin Black
Alternator 16 amp
Carburetor Remote Choke
Controls Equip for Remote
Crankshaft 1" Straight 3.16" PTO
Crankshaft Details 1/4" Keyway, 7/16-20 UNF-2B
Emissions Certification EXH/EU
Engine Base Oil Pressure Switch, 4 PSI
Engine Idle Speed Governed Idle 1750 +/- 100 RPM
Engine Package 810 Vanguard
Engine Sold In United States
Engine Speed 3600 +/- 0100 RPM - No Load
Flywheel Heavy - Cast Iron
Fuel Line 15" with 30 Micron Filter
Fuel Pump Integral
Fuel Shutoff Without
Label Power 26.0 Gross HP 810 Vanguard
Lubrication Full Pressure Lube
Oil Cooler Installed
Oil Drain Flex Hose (Right of Starter)
Oil Filter Premium
PTO Bearing High Radial Load
Purge Port Low Vacuum Purge Port Capped
Regulator Installed
Spark Plug Boot Extended
$1,999.00
Briggs & Stratton 26 HP 810cc Vanguard Engine 1 x 3-5/32 #49R977-0033—
$1,999.00

Product Information

Shipping & Returns

Description

Briggs & Stratton 26 HP
Vanguard Series Vertical Shaft OHV Engine


MODEL NUMBER:
 49R977-0033

POWER OUTPUT:
 26 Horse Power

SHAFT MOUNTING:
 Vertical Shaft

SHAFT SIZE: (D x L)
1" x 3-5/32" shaft, tapped 7/16" with 1/4" keyway

STARTER TYPE:
 Electric Starter

APPLICATION(S):
 Riding Mower Engine

WEIGHT:
 94 lbs

REPLACES:
 NEW SERIES!

WARRANTY:
3 Year Warranty
NOTES/FEATURES:

26hp Briggs Vanguard OHV
1" x 3-5/32" shaft, tapped 7/16" with 1/4" keyway.

ENGINE SPECIFICATIONS
Gross Horsepower* 26
Engine Displacement (cc) 810 cc (49.42 cu in)
Engine Configuration Vertical
Bore 3.30in (83.794mm)
Stroke 2.89in (73.406mm)
Compression Ratio 8.4:1
Ignition System Magnetron®
Lubrication System Full Pressure Lube
Carburetor 2 Barrel Float Feed
Governor Mechanical
Cylinder Block Cast Iron Sleeve
Starter Solenoid Shift Electric Start
EPA Compliant Engine Yes


ENGINE DIMENSIONS
Length x Width x Height 19.94in (506.48mm) x 18.53in (470.66mm) x 22.89in (581.41mm)
Weight 91lbs
Oil Capacity 66-68oz (1.95-2.01L)
Engine Displacement (cc) 810 cc (49.42 cu in)


Engine Specifications

SKU 49R977-0033
Model/Type/Trim 49R977-0033
6 Pin Connector Installed
Air Cleaner Cyclonic with Rain Cap Loose
Air Cleaner Color 290 Satin Black
Alternator 16 amp
Carburetor Remote Choke
Controls Equip for Remote
Crankshaft 1" Straight 3.16" PTO
Crankshaft Details 1/4" Keyway, 7/16-20 UNF-2B
Emissions Certification EXH/EU
Engine Base Oil Pressure Switch, 4 PSI
Engine Idle Speed Governed Idle 1750 +/- 100 RPM
Engine Package 810 Vanguard
Engine Sold In United States
Engine Speed 3600 +/- 0100 RPM - No Load
Flywheel Heavy - Cast Iron
Fuel Line 15" with 30 Micron Filter
Fuel Pump Integral
Fuel Shutoff Without
Label Power 26.0 Gross HP 810 Vanguard
Lubrication Full Pressure Lube
Oil Cooler Installed
Oil Drain Flex Hose (Right of Starter)
Oil Filter Premium
PTO Bearing High Radial Load
Purge Port Low Vacuum Purge Port Capped
Regulator Installed
Spark Plug Boot Extended
