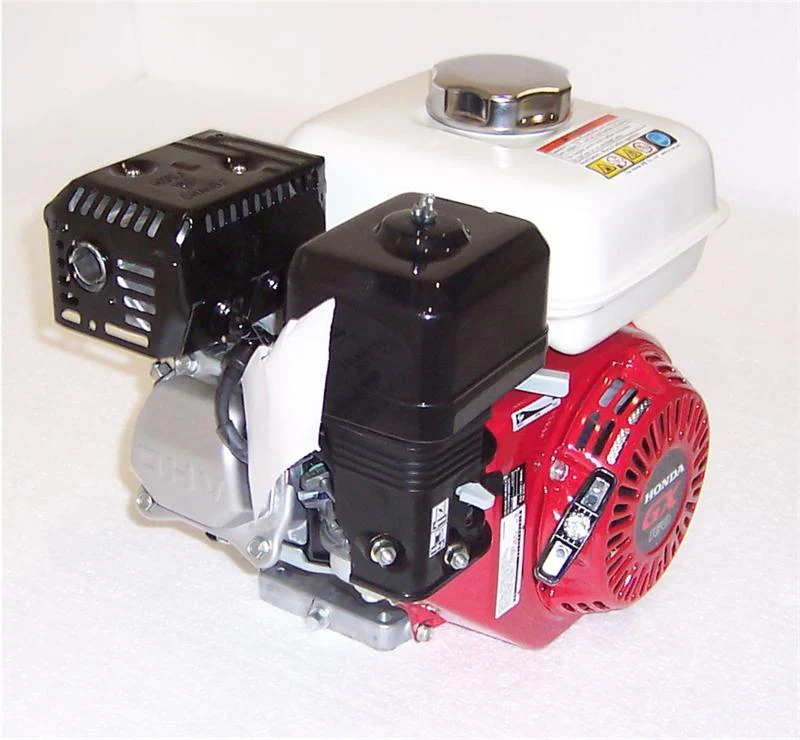

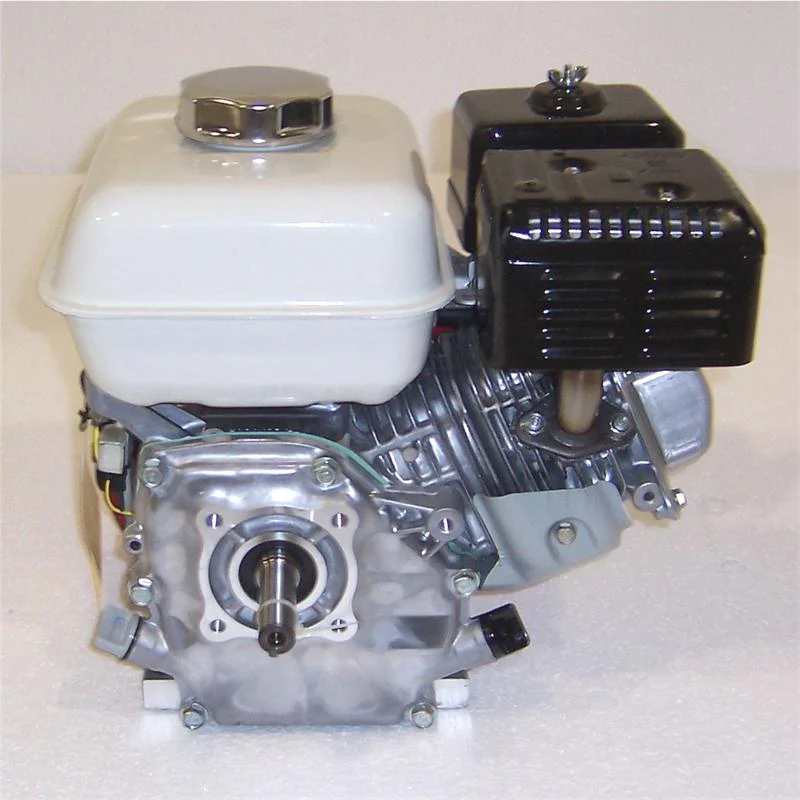

Honda Horizontal Engine 4.8 Net HP 163cc OHV 3/4" x 2-7/16" #GX160-QX2
4.8 Net HP Formerly Rated 5.5 HP

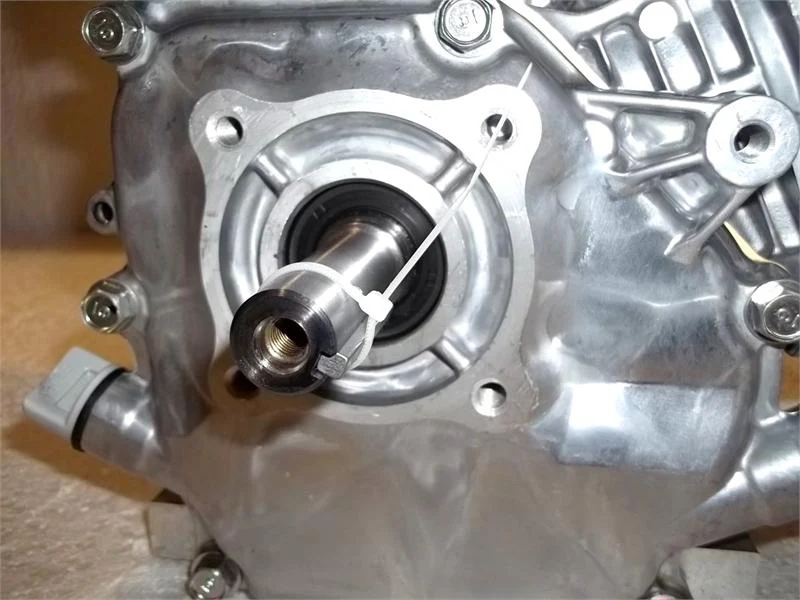

3/4" x 2-7/16" keyed shaft, tapped 5/16".
3/4" x 2-7/16" keyed shaft, tapped 5/16".
OHV, low oil shutdown protection, heavy duty industrial engine,
3 year warranty.
Universal bolt pattern for easy repowering.
Model GX160-QX2.
37 lbs
Features
• Honda OHV Commercial-grade engine
• Horizontal shaft
• Electronic ignition/Oil Alert
• EPA/CARB compliant
• 3 Year Commercial Warranty
Applications: Air compressors, Generators, Pumps
Pressure washers, Reel-type lawn mowers, Go-Karts, Agricultural equipment, Chipper/Shredders, Small construction equipment, Concrete saws
• Honda OHV Commercial-grade engine
• Horizontal shaft
• Electronic ignition/Oil Alert
• EPA/CARB compliant
• 3 Year Commercial Warranty
Applications: Air compressors, Generators, Pumps
Pressure washers, Reel-type lawn mowers, Go-Karts, Agricultural equipment, Chipper/Shredders, Small construction equipment, Concrete saws
* The power rating of the engine indicated in this document is the net power output tested on a production engine for the engine model and measured in accordance with SAE J1349 at 3600 rpm (7000 rpm for model GHX50). Mass production engines may vary from this value. Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operating speed of the engine in application, environmental conditions, maintenance and other variables.
PARTS: GX160-QX2
|
1
|
31-052 |
RECOIL STARTER ASSY HONDA
|
Honda # 28400-ZH8-013ZA
|
|
2
|
43-425 |
RECOIL SPRING HONDA
|
Honda # 28442-ZH8-003
|
|
3
|
31-023 |
RECOIL STARTER PULLEY
|
Honda #28420-ZH8-013
|
|
4
|
31-088 |
STARTER PAWL SPRING
|
Honda #28443-ZH8-003
|
|
5
|
31-025 |
STARTER PAWL
|
Honda #28422-ZH8-013
|
|
6
|
31-027 |
STARTER PAWL RETAINER
|
Honda #28433-ZH8-003
|
|
7
|
31-028 |
STARTER CENTER SCREW
|
Honda #90003-ZH8-003
|
|
8
|
33-013 |
SWITCH, HONDA
|
Honda #36100-ZE1-015
|
|
9
|
BLOWER HOUSING- FAN COVER
|
Honda #19610-ZE1-000ZA
|
|
|
10
|
30-346 |
AIR FILTER HONDA PRE-OILED
|
Honda #17211-ZE1-000
|
|
11
|
31-026 |
STARTER CUP
|
Honda #28451-ZH8-003
|
|
12
|
07-393 |
FITTING FUEL TANK HONDA
|
Honda #16955-ZE1-000
|
|
13
|
55-126 |
FUEL CAP HONDA
|
Honda #17620-ZE2-W00
|
|
14
|
07-118 |
FUEL FILTER IN TANK HONDA
|
Honda #17672-ZE2-W01
|
|
15
|
07-600 |
FUEL TANK HONDA
|
Honda #17510-ZE1-020ZA
|
|
16
|
07-060 |
FUEL LINE HONDA
|
Honda #95001-45200-40S
|
|
17
|
DIODE ASSEMBLY
|
Honda #34150-ZH7-003
|
|
|
18
|
BALL BEARING, CRANKSHAFT
|
Honda #96100-62050-00/91001-ZF1-003
|
|
|
19
|
33-541 |
SWITCH OIL LEVEL HONDA 15510-ZE2-033
|
Honda #15510-ZE1-033
|
|
20
|
50-450 |
GASKET, SUMP COVER
|
Honda #11381-ZH8-801
|
|
21
|
49-196 |
CAP WITH DIPSTICK HONDA
|
Honda #15600-ZE1-003
|
|
22
|
49-208 |
OIL SEAL HONDA
|
Honda #91202-883-005
|
|
23
|
50-451 |
OIL CAP
|
Honda #15600-ZE1-003
|
|
24
|
36-141 |
CONNECTING ROD HONDA
|
Honda #13200-ZE1-010
|
|
25
|
36-243 |
PISTON HONDA
|
Honda #13101-ZF7-010
|
|
26
|
36-043 |
RING SET HONDA
|
Honda #13010-ZF1-023
|
|
27
|
SHIELD, CYLINDER LOWER
|
Honda #19630-ZH8-000
|
|
|
28
|
50-425 |
GASKET MUFFLER HONDA
|
Honda #18381-ZH6-800
|
|
29
|
35-041 |
MUFFLER SHIELD
|
Honda #18320-ZF1-H01
|
|
30
|
35-038 |
MUFFLER HONDA
|
Honda #18310-ZF1-000
|
|
31
|
ROCKER COVER
|
Honda #12310-ZE1-020
|
|
|
32
|
50-432 |
GASKET VALVE COVER HONDA
|
Honda #12391-ZE1-000
|
|
33
|
49-183 |
GASKET CARB INSULATOR HONDA
|
Honda #16212-ZH8-800
|
|
34
|
49-190 |
GASKET CARB HONDA
|
Honda #16221-ZH8-801
|
|
35
|
49-914 |
LEVER, CHOKE
|
Honda #16610-ZE1-000
|
|
36
|
49-185 |
GASKET AIR CLEANER HONDA
|
Honda #16220-ZE1-020
|
|
37
|
33-348 |
MODULE SOLID STATE HONDA
|
Honda #30500-ZE1-033
|
|
38
|
36-521 |
VALVE INTAKE HONDA
|
Honda #14711-ZF1-000
|
|
39
|
36-522 |
VALVE EXHAUST HONDA
|
Honda #14721-ZF1-000
|
|
40
|
50-556 |
HEAD GASKET HONDA
|
Honda #12251-ZF1-000
|
|
41
|
36-530 |
LONG HEAD HONDA GX160
|
|
|
42
|
50-638 |
CARBURETOR COMPLETE HONDA
|
Honda #16100-ZH8-W50
|
|
43
|
49-208 |
OIL SEAL HONDA
|
Honda #91202-883-005
|
